Pre-Insulated Pipe Shields
- Products
- >
- Insulated Shields
Keep your insulation in great condition with pre-insulated pipe shields today. In the construction, building design, and maintenance trades, every detail matters. Even the small components play a vital role in the integrity and longevity of your work. Our pre-insulated pipe shields are manufactured with the need for enduring protection and support in mind.
Insulated shields are 180 or 360-degree galvanized protective shields (stainless steel available) fitted with your choice of insulation options; ready to be installed at each hanger location with SSL.
Shields protect ASJ and support blocking at hanger locations. Shield configurations including straight, with flare, or with rib & flare are available on most. Flares add a level of protection for jacket or cladding. Ribs aid installation by ensuring shields are centered and retained in the hanger.
Our pipe insulation shields are a promise of quality, reliability, and attention to detail. Manufactured at a family enterprise with a commitment to the standards of the HVACR industry. Take a look at our shields below to discover which is best for your needs right now.
Insulation Types
Phenolic Insulated Shields
- Used on low and mid-temperature plumbing and HVAC piping operating between -290°F and 250°F
- Commonly installed on domestic hot and cold water, chilled water, heating hot water, condenser water, and low-pressure steam lines

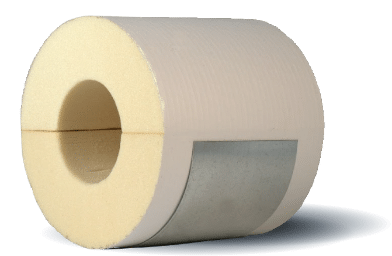

Polyisocyanurate Insulated Shields
- Used on low and mid-temperature plumbing and HVAC piping operating between -297°F and 300°F
- Commonly installed on domestic hot and cold water, chilled water, heating hot water, condenser water, and low-pressure steam lines
Cellular Glass Insulated Shields
- Used on low and mid-temperature plumbing and HVAC piping operating between -450°F and 900°F
- Commonly installed on domestic hot and cold water, chilled water, heating hot water, condenser water, and steam lines
Calcium Silicate Insulated Shields
- Used on piping systems operating between 0°F and 1200°F
- Commonly installed on domestic hot water, heating hot water, and steam lines
INSULATION OPTIONS
| Product | ASTM | Density (pcf) lb/ft^3 | Pipe Size | Length | Insulation Thickness | Min. Temp (F°) | Max Temp (F°) | |
|---|---|---|---|---|---|---|---|---|
| Phenolic | ASTM-C1126 | 2.5 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | -290° | 250° | |
| Phenolic | ASTM-C1126 | 3.75 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | -290° | 250° | |
| Phenolic | ASTM-C1126 | 5 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | -290° | 250° | |
| Phenolic | ASTM-C1126 | 7.5 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | -290° | 250° | |
| Polyiso | ASTM -C591 | 2 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | -297° | 300° | |
| Polyiso | ASTM -C591 | 4 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | -297° | 300° | |
| Polyiso | ASTM -C591 | 6 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | -297° | 300° | |
| Cell Glass | ASTM-C552 | 7.5 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | -450° | 900° | |
| CalSil | ASTM-C533 | 13 | 5/8″ CTS – 24″ IPS | 6″ – 36″ | 1″ – 4″ | – | 1200° |
Shield OPTIONS
| Gauge | Length | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OD | 24 | 22 | 20 | 18 | 16 | 14 | 12 | 4 | 8 | 12 | 18 | 24 | 36 | 48 | |
| 1.5 | ✓ | ✓ | ✓ | – | – | – | – | ✓ | ✓ | ✓ | – | – | – | – | |
| 2 | ✓ | ✓ | ✓ | – | – | – | – | ✓ | ✓ | ✓ | – | – | – | – | |
| 2.5 | ✓ | ✓ | ✓ | – | – | – | – | ✓ | ✓ | ✓ | – | – | – | – | |
| 3 | ✓ | ✓ | ✓ | – | – | – | – | ✓ | ✓ | ✓ | – | – | – | – | |
| 3.5 | ✓ | ✓ | ✓ | – | – | – | – | ✓ | ✓ | ✓ | – | – | – | – | |
| 4 | ✓ | ✓ | ✓ | ✓ | – | – | – | ✓ | ✓ | ✓ | ✓ | – | – | – | |
| 4.5 | ✓ | ✓ | ✓ | ✓ | – | – | – | ✓ | ✓ | ✓ | ✓ | – | – | – | |
| 5 | ✓ | ✓ | ✓ | ✓ | ✓ | – | – | ✓ | ✓ | ✓ | ✓ | – | – | – | |
| 5.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 6 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 6.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 7 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 7.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 8 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 8.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 9 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 9.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 10 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 10.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 11 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 11.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 12 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 12.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 13 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 13.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 14 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 14.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 15 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 15.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 16 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 16.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 17 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 17.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 18 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 18.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 19 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 19.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 20 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 20.5 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 21 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
