Insulation Shields

Shields protect ASJ and support blocking at hanger locations. IC manufactures custom insulation shields to be as robust as they are reliable. Galvanized steel (stainless available) made in various configurations including straight, with flare, or with rib & flare options available on most. Flares add a level of protection for jacket or cladding. Ribs aid installation by ensuring shields are centered and retained in the hanger. We promise reliability and confidence, delivered with pride in every insulation protection shield we offer. Reach out today for support and protection of your pipe insulation.

Download Data Sheet
Insulation Components The logo displays the word "TRILOK" with the letter "I" stylized as a blue padlock icon, suggesting security or protection, ideal for brands focused on pipe insulation or heat protection. The text is in bold, blue and black letters on a white background. | USA Made Pipe Shields and More
Curved metallic tube on blue background.
Patent Pending
Coming Soon

Three points of contact, zero points of failure.

A next-generation pipe shield designed for maximum strength, flexibility, and safety.

Engineered with a three-point retention system and a smooth, installer-safe design that protects insulation integrity and ensures long-term performance.

Sign up to be the first to know when Trilok launches

You can always turn to our team for your insulation shield needs because you deserve a high-quality system. Insulation shields ensure hangers don’t damage insulation pipes. Our galvanized steel insulation shields ensure hangers don’t damage pipe insulation or ASJ.

With high-quality shields, you can ensure even weight distribution and keep the system suspended safely.

Shield Types

Rib & Flare

  • Flared ends and ribs formed into each part
  • Flared ends prevent damage to the ASJ vapor barrier
  • Ribs aid in the alignment of the shield (ensures shield is centered directly below the hanger) and prevents shield from slipping out of place with pipe movement

Flared

  • Flared ends formed into each part and prevent damage to the ASJ vapor barrier

No Flare

  • Some shields are not available with rib or flare options

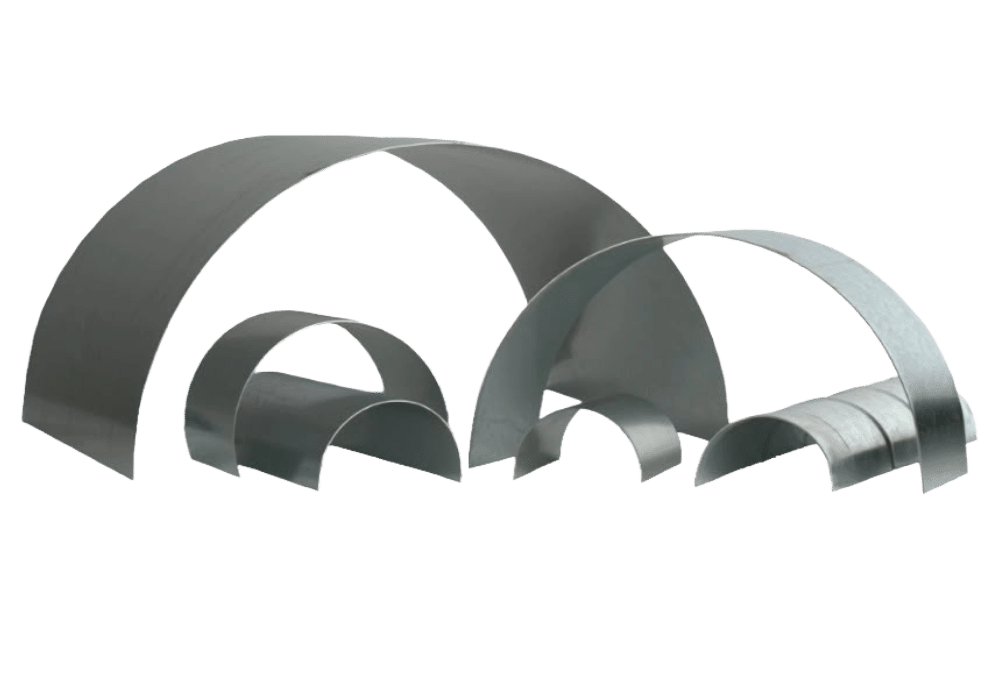

MSS Series

  • Custom sizes available conforming with ANSI/MSS-SP-58 (Type 40) and ANSI/MSS-SP-69

Shield OPTIONS

Gauge Length
OD 24 22 20 18 16 14 12 4 8 12 18 24 36 48
1.5 ✓ ✓ ✓ – – – – ✓ ✓ ✓ – – – –
2 ✓ ✓ ✓ – – – – ✓ ✓ ✓ – – – –
2.5 ✓ ✓ ✓ – – – – ✓ ✓ ✓ – – – –
3 ✓ ✓ ✓ – – – – ✓ ✓ ✓ – – – –
3.5 ✓ ✓ ✓ – – – – ✓ ✓ ✓ – – – –
4 ✓ ✓ ✓ ✓ – – – ✓ ✓ ✓ ✓ – – –
4.5 ✓ ✓ ✓ ✓ – – – ✓ ✓ ✓ ✓ – – –
5 ✓ ✓ ✓ ✓ ✓ – – ✓ ✓ ✓ ✓ – – –
5.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
6 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
6.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
7 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
7.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
8 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
8.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
9 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
9.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
10 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
10.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
11 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
11.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
12 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
12.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
13 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
13.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
14 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
14.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
15 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
15.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
16 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
16.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
17 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
17.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
18 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
18.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
19 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
19.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
20 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
20.5 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
21 ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
We are happy to discuss custom sizes and options to fit your project needs.
