StrutFoot
- Products
- >
- StrutFoot
Strutfoot R500-Plastic foot 100x100 (4” square)
The R500 plastic foot is our new heavy-duty foot suitable for 100×100 box section. It has been designed and manufactured in house to offer a larger product range for our customers.
It is made with a High-Density Polyethylene (HDPE) plastic making it lightweight and very robust. There is an anti-vibration foam pad pre attached to the foot ensuring there is no reaction with the waterproof membrane.
Strutfoot R400D-Plastic foot 80x80 (3” 7/16 Square)
The R500 plastic foot is our new heavy-duty foot suitable for 80×80 box section and back to back (2 x 1” 9/16). It has been designed and manufactured in house to offer a larger product range for our customers.
It is made with a High-Density Polyethylene (HDPE) plastic making it lightweight and very robust. There is an anti-vibration foam pad pre attached to the foot ensuring there is no reaction with the waterproof membrane.
H-Frame kit
The H Frame Kit is a quick and easy solution to support all cable management, ducting and pipe work.
Kit Includes
Plastic feet x 2
Fixing Kit x1
| Part No. | Feet Size |
|---|---|
| SF3305 | 12 Inch |
| SF3500 | 19 ¾ Inch |

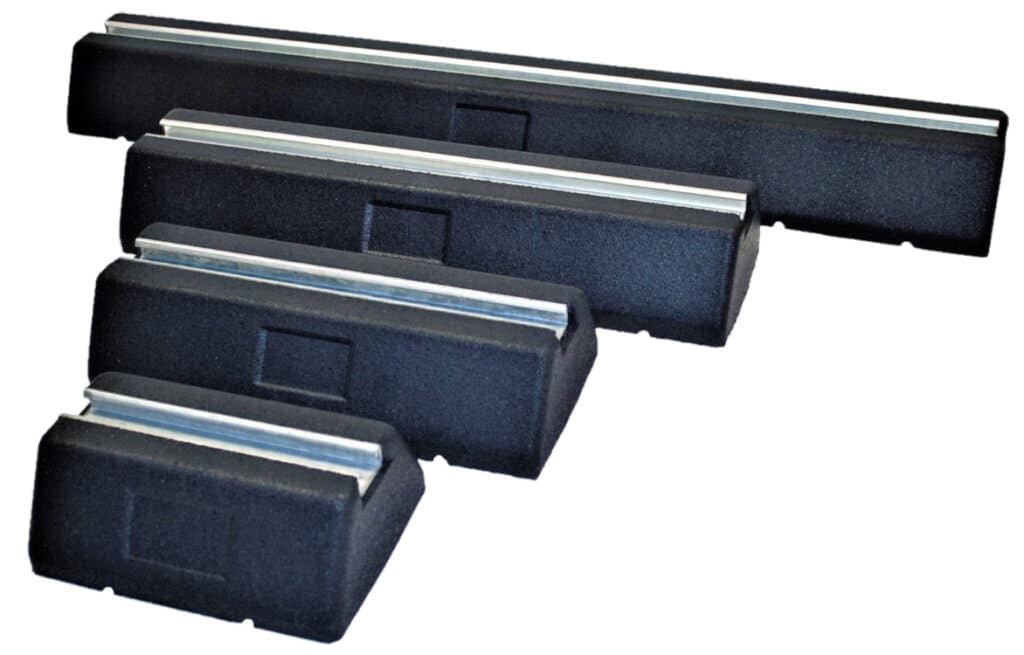

StrutFoot SFR Rubber Feet
The SFR range of recycled rubber feet has been designed to carry loads on non-penetrable roofs, which include pipe work, cable management and small units. We offer the SFR feet with Aluminium channel to ensure a high corrosion resistance.
| Part No. | Product Description |
|---|---|
| SF4025 | 250mm Rubber foot (10") |
| SF4040 | 400mm Rubber foot (10") |
| SF4040 | 600mm Rubber foot (16") |
| SF4040 | 1000mm Rubber foot (40") |
StrutFoot SFR Rubber Feet High Block (heat pump feet)
The SFR range of recycled rubber feet has been designed to carry loads on non-penetrable roofs, which include pipe work, cable management and small units. We offer the SFR feet with Aluminium channel to ensure a high corrosion resistance.
| Part No. | Product Description |
|---|---|
| SF1560 | SFR600 High block (24") |
| SF1512 | SFR1200 High block (48") |
StrutFoot Base & Plus
- Easy to adapt & extend to suit most installations and can be extended to any length.
- Channel framework provides strength & convenience for cable management installation
- Cross compatibility with all channel type brackets
- Fast & economical systems for mounting M&E services, Air Conditioning & Refrigeration on flat roofs
- Easy to install for individual products or complete installations
- No penetration of waterproof roof membrane
- Non drill system
| Part No. | Product Description | Complete Leg Assembly |
|---|---|---|
| SF1002 | StrutFoot Base | 4 |
| SF1004 | StrutFoot Plus | 2 |

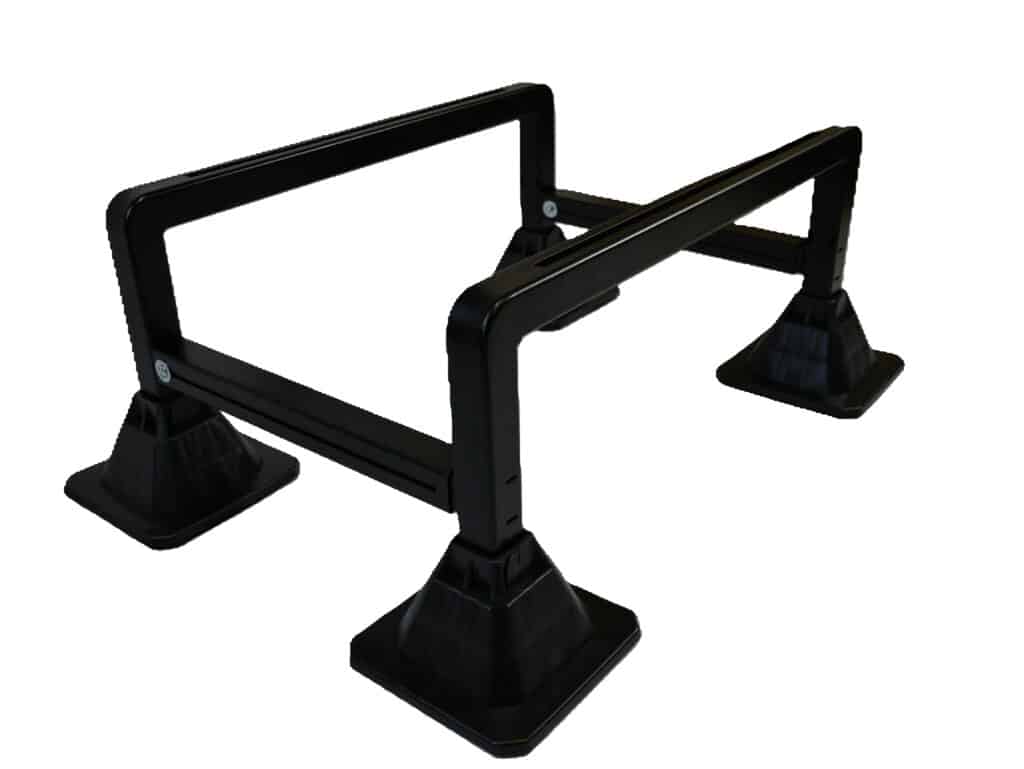

StrutFast Mini Frame
The mini frame is the brand-new addition to the StrutFast range.
With this new system you will be able to build a frame for your unit in under 3 minutes with the new click system.
The frame has been designed using box section, so it is robust with a black powder coated finish.
This is all supplied in one box.
| Part No. | Product Description |
|---|---|
| SF1585 | Mini Base |
| SF1586 | Mini Plus |
